Hormann Launches Fast Doors Suitable for High Temperature Changes

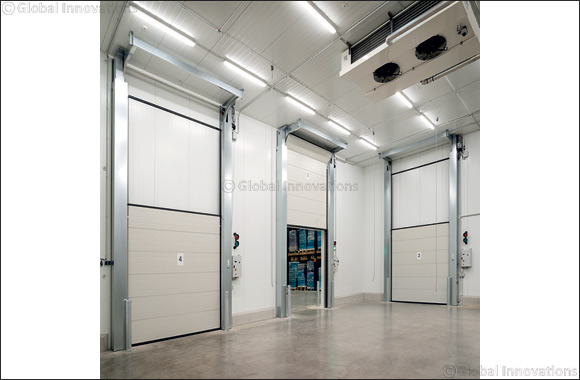

Dubai, UAE; March 23, 2020: Hormann’s new Iso Speed Cold 100 door is the optimum solution for all areas with high temperature differences, thanks to its heated panels and special seals between the building structure and the ground. It is perfect for use as a high-speed door in cold-storage halls or to save energy in production and distribution areas.
It can insulate refrigerated or cold store areas even if the temperature is down to –28 °C. This low maintenance springless door has a depth of 100 mm and a stucco-textured surface on the interior and exterior, with a Grey white base on RAL 9002, which can be changed to almost 200 different color bases. The double-skinned door leaf is foam-filled with CFC free polyurethane (PU) rigid foam, therefore giving it exceptionally high strength and making it possible to attain the highest thermal values in conjunction with an all-round sealing frame.
Darius Khanloo, managing director, Hormann Middle East & Africa, says: “The Iso Speed Cold 100 door is characterised by its high thermal insulation and fast opening speed. The door with its 100-mm-thick sections with thermal break offers excellent insulation of up to 0.57 W/ (m²·K). This is perfect for all cold storage areas. We work very closely with companies that have cold storage requirements and this door is a result of our interaction with our clients and listening to their needs.”
The standard Iso Speed Cold 100 is equipped with the ‘Hormann Smartcontrol’, which helps to monitor and analyse the functions of the door and collect all information related to it such as error messages, and door travel, in an online portal. The information is then used by Hormann team for a fast and simple troubleshooting, thus minimizing costs of on-site service visits.
An important feature of the door is the air curtain that ensures flow of air from the warm side of the opening, to enable reduction in humidity in case there is ice formation. A floor heating system, with a frame depth of 200mm, is also installed to prevent the door leaf from freezing.
This quiet door has a maximum width and height of 5000 mm and it is resistant to water penetration and wind load. Iso Speed Cold 100 doors use sturdy flat belts to guarantee 500,000 cycles, making them cost effective.
Another stand out feature of the door is the 3D laser scanner for monitoring motion that ensures that the door automatically opens and closes when a moving object is detected. The door opens when it detects a vehicle moving towards the door and closes when a vehicle moves away from the door.
